Product Detail

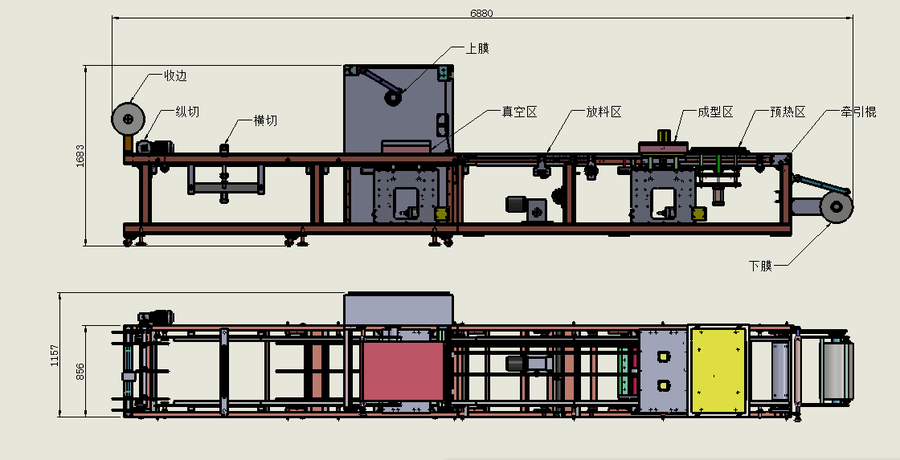

Automatic feeding stretch film packaging machine
Detail





  Automatic stretch film packaging machine is through the next film stretch molding, and then the package into the molded under the cavity, and then in the closure of the package vacuum or vacuum inflatable, and the film and the film Heat sealing, and then through the point off, crosscutting, slitting the packaging will be split, the final packaging of the finished product transported to the next process, the remaining waste material recovered by the collector


The main technical parameters:


On the film wide545
Under the film wide570
Power supply380V   50Hz
Total power26KW
Cooling water≥0.15Mpa
Gas source≥0.6Mpa
Efficacy200-500 beats / hour
Overall dimensions (length, width and height)7000X1200X2050
weight7000X1200X2050
