Product Detail

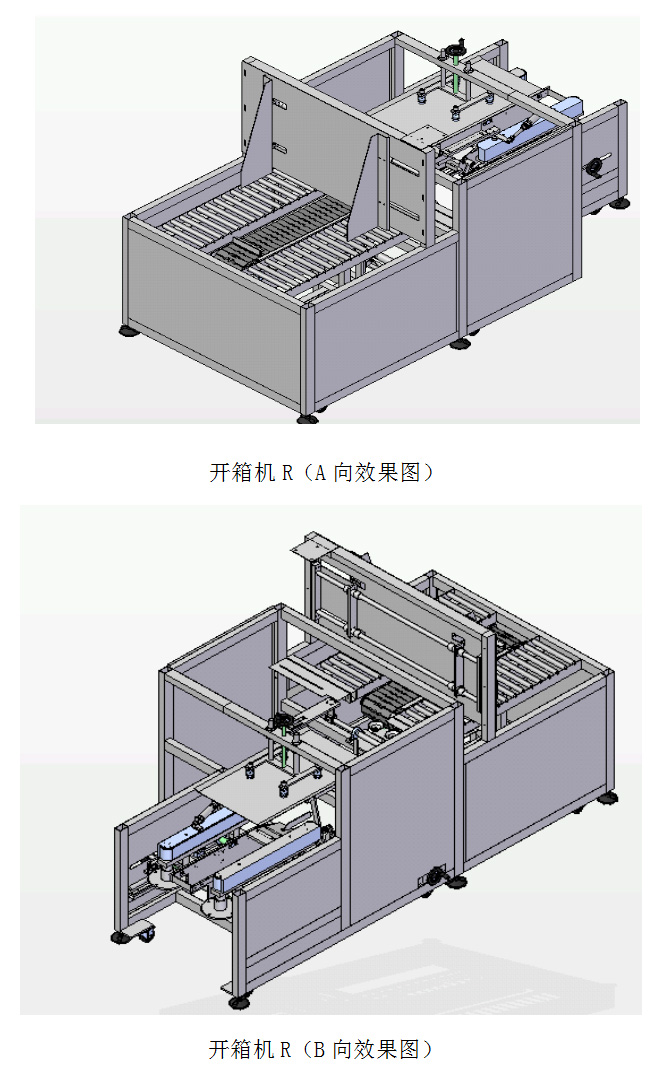

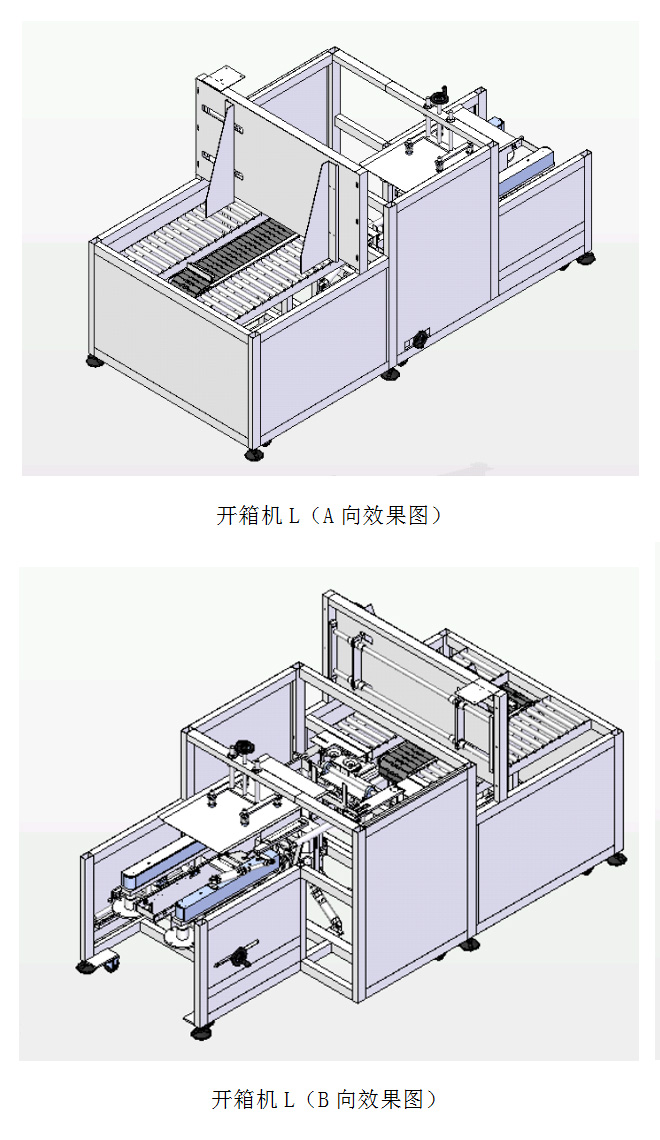

Automatic unpacking back cover machine


  This open-box empty cartons with horizontal storage, can be added at any time empty cartons, without downtime, suction boxes, molding, folding bottom, back cover once completed. Transform carton specifications need to manually adjust the transfer, easy to adjust.

The main technical parameters

* Out of the box capacity: 8-12 boxes / minute

* Use electricity: 380V 900W

* Air pressure: 0.6 ~ 0.8Mpa

* Tape size: width 60mm, diameter 76mm

* Carton size: L 350-550 x W 280-380 x H 180-300mm

* Workbench height: 850mm (adjustable)

* Overall dimensions: L 2650 x W 1300 x H 1500mm
